GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

Product Categories
GEO-ALLEN CO.,LTD.
Contact Now

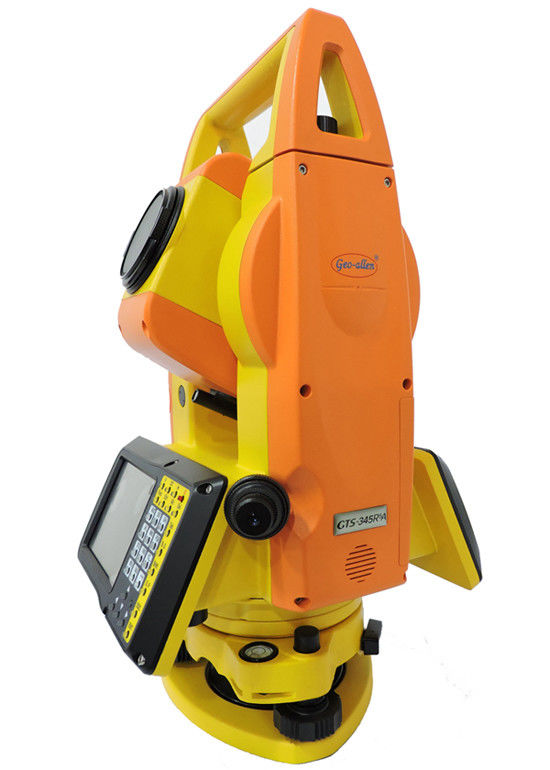

GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

Brand Name : GEOALLEN

Model Number : GTS340 SERIAL

Packaging Details : Plastic case & carbon box

Place of Origin : CHINA

MOQ : 1pc

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 10000pcs

Delivery Time : 5-8 work days

colour : orange/yellow

screen : 3.5" colour touch screen with pen

battery : rechargeable lithium battery

water/dust proof class : IP54

accuracy : 1", 2" 5"

prismless range : 600m / 1000m

compensator : dual axises compensator

special function : one touch measurement

Contact Now

GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

Specifications

TECHNICAL DATA

  GTS-342R10A
DISTANCE MEASURING
Max. Distance one prism 3.5KM
(good weather) reflecting paper 1.2KMm (based on different condition)
  prismless 1000m
display Max:999999.99M Min:1MM
accuracy 2+2PPM(with prism), ＜100M,3+2PPM,＞100M,5+5PPM(no prism, fine)
measuring time fine: ＜1.5s, tracing: 0.1s,repeat:＜0.3s
wether constance change automatic change after input constance
prism constance change automatic change after input constance
ANGLE MEASURING
measurment way absolute encode
Crosshair plate diam. 79MM
Min. Reading 1" optional
accuracy   2"
VERTICAL COMPENSATOR
system   dual axis liquid-electric sensor
working range   +/-4'
precision   1"
LEVEL SENSITIVITY
plate level   30"/2mm
cicular level   8'/2mm
TELESCOPE
image erect
length of telescope 152MM
Diam. of objective len's telescope:45mm/distance measure:47mm
Magnificant 30*
Field of view   1° 30'
Min. focus   1.3m
DISPLAY
type dual face
POWER
source chargeable lithium battery
voltage DC7.4V
continues working time 8 H
MEASURMENT AND WEIGHT
dim. L216*W200*H350 MM
weight


6.0KG

GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction


GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

600m reflectorless measurement Laser pointer, Data transfer and storage Flash disk
easy to find target and SD card, Mini USB



GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

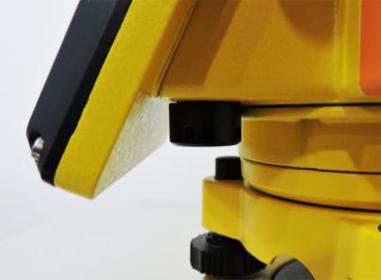

Bluetooth transportation Concentrated ball bearing

BT 4.0, easy connect to data collector, etc Solve axis jam, more stable and reliable



GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

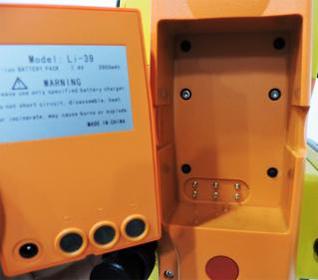

T-P sensor, automatic correction Totally new design for battery



GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction

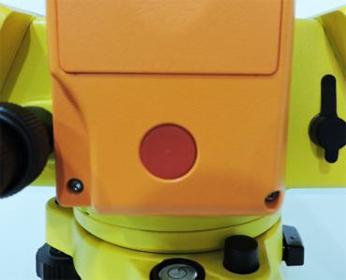

EDM Trigger Key

Quick Measure Key locates on the side cover, which avoids any possible torque during the angle measurement
